Description
Minimum Order Quantity 10 Piece

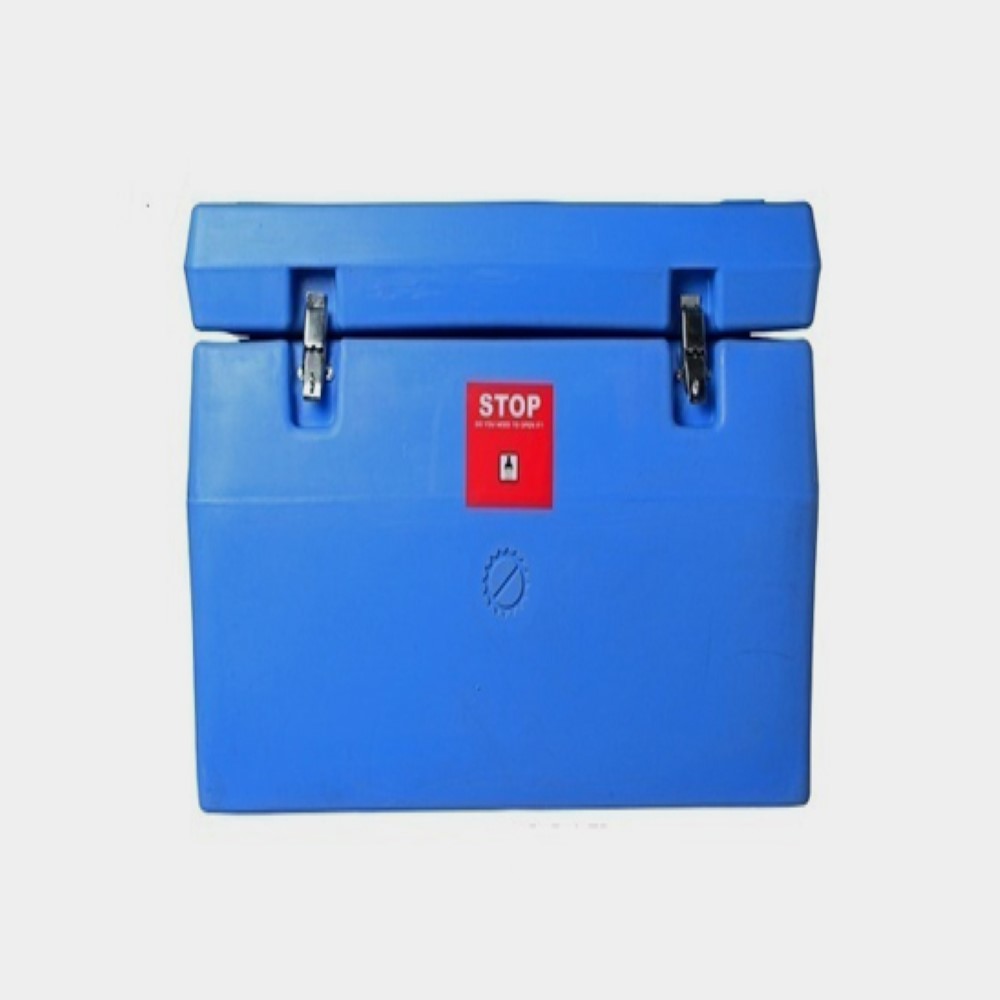

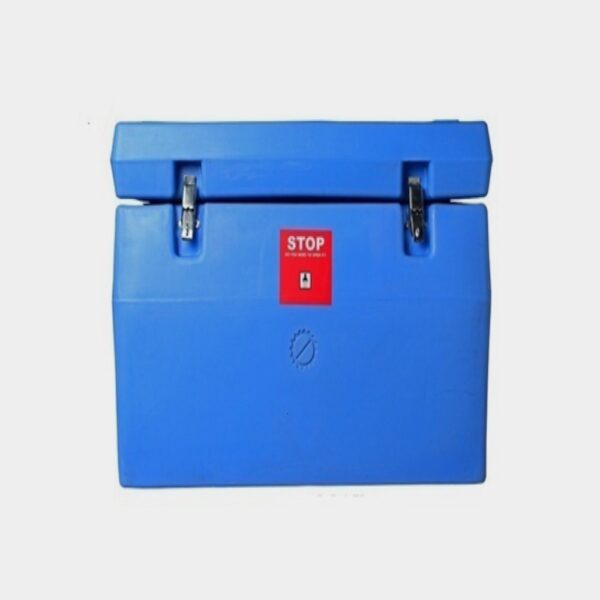

Model Number/Name IGHCPL – 316
Type Large Cold Box, Long Range
Vaccine Storgae Capacity 22.0 Litres
Weight Fully Loaded 49.5 Kgs.
Weight Empty 21.9 Kgs. (With Empty Icepacks)
External Surface Material LLDPE
Internal Lining Material LLDPE
Insulation Material CFC free Polyurethane
Insulation Thickness 100 mm
External Dimensions 77 x 62 x 52 cms
Internal Dimensions 52 x 37 x 28 cms
Vaccine Storage Dimensions 45 x 30 x 17 cms
Lid type and Fixings Hinged
Specifications :
MODEL IGHCPL -316L
TYPE Large Cold Box, Long Range
WHO PIS Reference Number E-4/93-M
Vaccine Storgae Capacity 22.0 Litres
Weight – fully loaded 49.5 Kgs.
Weight – empty (with empty icepacks) 21.9 Kgs.
External Surface Material LLDPE*
Internal Lining Material LLDPE*
Insulation Material CFC free Polyurethane
Insulation Thickness 100 mm
External Dimensions (L x W x H) 77 x 62 x 52 cms
Internal dimensions (L x W x H) 52 x 37 x 28 cms
Vaccine Storage Dimensions 52 x 37 x 28 cms
Lid type & Fixings Hinged
Number of Ice packs required 31
Number of Ice packs supplied 31
Ice-packs type E5/IP.1
Volume of Icepack 0.60 Litres
Ice-packs type E5/IP.2
Volume of Icepack 0.40 Litres
PERFORMANCE
Conforming to WHO Specifications E4/CB.4
Cold Life Requirement as per WHO at 43 deg C 1 deg C without opening Min. 48 Hours
Actual Cold Life wothout opening 43 deg C 1 deg C as Tested by WHO approved Testing Lab, PSB, Singapore 67 Hours 56 minutes
SHIPPING DIMENSIONS
Quantity in each carton (Nos.) 1
Gross Weight (approx.) 18 Kgs.
Size of carton (L x W x H) (approx.) 66 x 66 x 38 cms
Volume of each carton (approx.) 0.18 CBM
No. of Units/20′ container 140
No. of Units/40′ container 300
No. of Units/40′ High cube container 415
